Scaffolding Pipe

Short Description:

Keywords: Scaffolding Tube, GI Pipe, Scaffolding Pipe, Galvanized Scaffolding Pipe

Size: (2)OD:38.1mm/42.3mm/48.3mm/48.6mm;WT:2.0mm/2.5mm/2.75mm/3.0mm/3.25mm/3.85mm/4.0mm;LENGTH: 0.3mtr ~ 18mtr

Standard & Grade: GB 15831, EN 39, EN 10219, BS 1139, BS 1387-1985, JIS G 3444

Ends: Square Cut, Plain End, Burr Removed

Delivery: Within 30 Days And Depends On Your Order Quantity.

Payment: TT, LC , OA , D/P

Packing: Bundles with Strips, Waterproof Paper Wrapped Or As Clients Requirement

Usage: Used for Low Pressure Liquid Delivery, Such As Water, Gas, And Oil

Send email to us Download as PDF

Product Detail

Specification

Standard

Painting & Coating

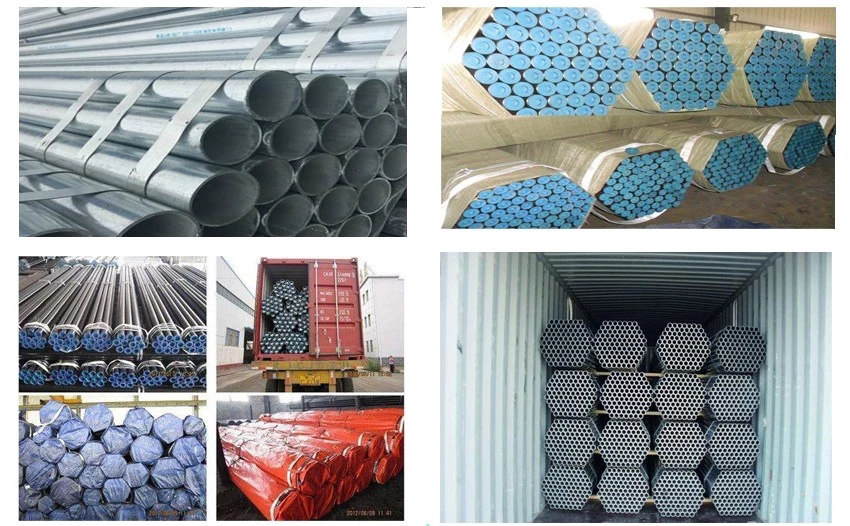

Packing & Loading

Use: Scaffolding is a temporary structure used to support people and material in the construction or repair of buildings and other large structures. Material Storage Racks, Pallets, Hydraulic Platforms, Trusses, Columns, Purlins, Greenhouse, Stands Towers, Agricultural Equipment

Standard: BS 1139, BS1387-1985, EN 39, EN10219, JIS G 3444

Certificate: EN10217, EN10219, API 5L PSL1/ PSL2, API 5CT

Out Diameter: 27mm, 38mm, 42mm, 48.3mm-48.6mm

Wall Thickness: 2.0mm, 2.5mm, 2.75mm, 3.0mm, 3.25mm, 3.85mm, 4.0mm

Length: 5.8m, 6m, 6.4m, 6.5m, 0.3-18m

End: Square cut, Burr removed

Steel Grade: Q195, Q215, Q235, Q345, S235JR, S275JR, STK400, STK500

Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black

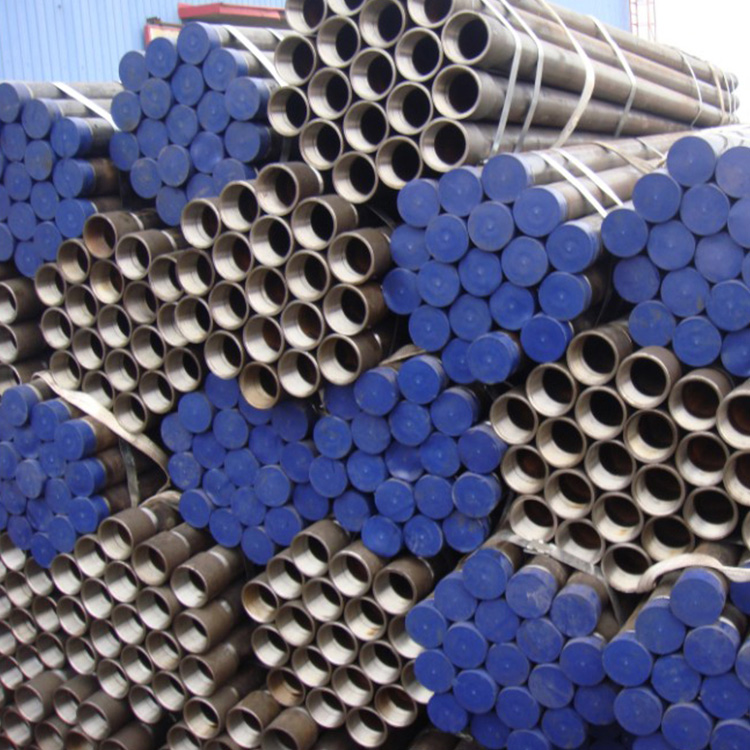

Packing: Plastic plugs in both ends, Wrapped in waterproof paper or PVC sleeve, and sackcloth with several steel strips Plastic plugs in both ends.

Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test, Blow Test, Impact Test etc), Exterior Size Inspection.

Mill Test Certificate: EN 10204/3.1B

Payment Terms: T/T， L/C

Production Time 7-40 days
Delivery Time 7-40 days
Trade terms: FOB, CFR, CIF
Delivery Detail：Depends on your order quantity.
Packaging Detail: Packing in bundles or for the client's requirement
Supply Ability: 500 Metric Ton/Metric Tons per Day

Previous: Nut

Next: Scaffolding Plank

High tensile galvanized scaffolding steel pipe are designed for pipe&coupler scaffolding.

The pipes have hot-dipped galvanized surfaces finish so as to provide excellent appearance with

sufficient durability in such applications where salty air or long-term weather exposures are inevitable.

galvanized scaffolding pipe	galvanized scaffolding pipe	galvanized scaffolding pipe
Outside diameter (mm)	Wall thickness (mm)	Length (m)
48.3-48.6	2.0-2.5	0.3-12
48.3-48.6	2.75	0.3-12
48.3-48.6	3	0.3-12
48.3-48.6	3.2	0.3-12
48.3-48.6	3.6	0.3-12
48.3-48.6	3.8	0.3-12
48.3-48.6	4	0.3-12
38.1	4	0.3-12
42.3	4	0.3-12

Galvanized Scaffold Tube Type 4 BS1139 & EN39
Code	Items	Size	W.T(KG)
WST40	Galvanized Scaffold Tube Type 4	OD48.3×4.0mm	26.21

Galvanized Scaffolding Pipes Type 3 BS1139 & EN39
Code	Items	Size	W.T(KG)
WST32	Galvanized Scaffolding Pipe Type 3	OD48.3×3.2mm	21.35

2.7mm Scaffold Tube O.D 48.3mm
Code	Items	Size	W.T
WST27	Scaffold Tube 2.7mm	OD48.3×2.7mm	18.22

2.5mm Scaffold Tube O.D48.3mm
Code	Items	Size	W.T
WST25	Scaffold Tube 2.5mm	OD48.3 x 2.5mm	16.95

2.2mm Scaffolding GI Pipes O.D 48.6mm
Code	Items	Size	W.T(KG)
WST22	Scaffolding GI Pipes 2.2mm	OD 48.6 x 2.2mm	15.10

1.8mm Scaffolding GI Pipes O.D 48.6mm
Code	Items	Size	W.T(KG)
WST18	1.8mm Scaffolding GI Pipe	OD48.6 x 1.8mm	12.46

2.0mm GI Pipe Scaffolding O.D 48.6mm
Code	Items	Size	W.T(KG)
WST20	2.0mm GI Pipe Scaffolding	OD48.6 x 2.0mm	13.79

Scaffold Steel Black Tube M.S O.D 48.3mm
Code No.	Items	Description	Steel Grade
WST4820	Black Scaffold Tube 48×2.0mm	OD48.3 x 2.0mm	Q235\| Q345
WST4822	Black Scaffold Tube 48×2.2mm	OD48.3 x 2.2mm	Q235\| Q345
WST4825	Black Scaffold Tube 48×2.5mm	OD48.3 x 2.5mm	Q235\| Q345
WST4828	Black Scaffold Tube 48×2.8mm	OD48.3 x 2.8mm	Q235\| Q345
WST4830	Black Scaffold Tube 48×3.0mm	OD48.3 x 3.0mm	Q235\| Q345
WST4832	Black Scaffold Tube 48×3.2mm	OD48.3 x 3.2mm	Q235\| Q345

OD60mm Steel Scaffolding Pipes
Code	Items	Size	Steel Grade	Surface
WST6017	1.7mm Scaffold Black Tube OD60.3mm	O.D 60.3×1.7mm	Q235\|Q345	Galvanized \| Black
WST6018	1.8mm Scaffold Black Tube OD60.3mm	O.D 60.3×1.8mm	Q235\|Q345	Galvanized \| Black
WST6020	2.0mm Scaffold Black Tube OD60.3mm	O.D 60.3×2.0mm	Q235\|Q345	Galvanized \| Black
WST6022	2.2mm Scaffold Black Tube OD60.3mm	O.D 60.3×2.2mm	Q235\|Q345	Galvanized \| Black
WST6025	2.5mm Scaffold Black Tube OD60.3mm	O.D 60.3×2.5mm	Q235\|Q345	Galvanized \| Black
WST6030	3.0mm Scaffold Black Tube OD60.3mm	O.D 60.3×3.0mm	Q235\|Q345	Galvanized \| Black
WST6032	3.2mm Scaffold Black Tube OD60.3mm	O.D 60.3×3.2mm	Q235\|Q345	Galvanized \| Black
WST6036	3.6mm Scaffold Black Tube OD60.3mm	O.D 60.3×3.6mm	Q235\|Q345	Galvanized \| Black
WST6040	4.0mm Scaffold Black Tube OD60.3mm	O.D 60.3×4.0mm	Q235\|Q345	Galvanized \| Black

OD42.7 mm Scaffold Steel Tube
Code	Items	Size	Surface
WST4216	1.6mm Scaffold Tube O.D 42.7mm	OD42.7×1.6mm	Galvanized \| Black
WST4217	1.7mm Scaffold Tube O.D 42.7mm	OD42.7×1.7mm	Galvanized \| Black
WST4218	1.8mm Scaffold Tube O.D 42.7mm	OD42.7×1.8mm	Galvanized \| Black
WST4220	2.0mm Scaffold Tube O.D 42.7mm	OD42.7×2.0mm	Galvanized \| Black
WST4222	2.2mm Scaffold Tube O.D 42.7mm	OD42.7×2.2mm	Galvanized \| Black
WST4224	2.4mm Scaffold Tube O.D 42.7mm	OD42.7×2.4mm	Galvanized \| Black
WST4225	2.5mm Scaffold Tube O.D 42.7mm	OD42.7×2.5mm	Galvanized \| Black
WST4227	2.7mm Scaffold Tube O.D 42.7mm	OD42.7×2.7mm	Galvanized \| Black
WST4230	3.0mm Scaffold Tube O.D 42.7mm	OD42.7×23.0mm	Galvanized \| Black
WST4232	3.2mm Scaffold Tube O.D 42.7mm	OD42.7×3.2mm	Galvanized \| Black
WST4235	3.5mm Scaffold Tube O.D 42.7mm	OD42.7×3.5mm	Galvanized \| Black
