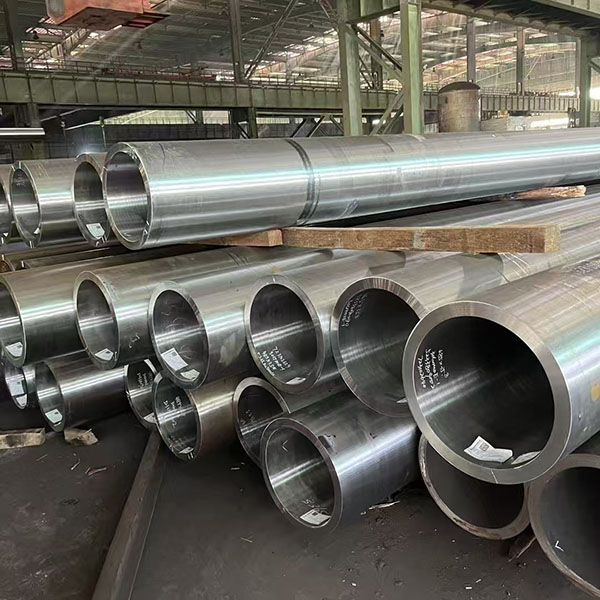

High temperature alloy steel tubes are known as chrome moly pipe.
ASTM A213, A209 specification covers alloy steel seamless tube for high temperature service. Seamless alloy steel tubes are suitable for bending and similar forming operations, and for fusion welding at high temperatures. High temperature alloy steel tube are also considered as low alloy chrome moly grades.
ASTM/ASME A/SA213 Gr. T2, T11, T12, T22, T91, T92
ASTM/ASME A/SA335 Gr. P1, P2, P5, P11, P12, P22
ASTM/ASME A/SA209 T1, T1a, T1b

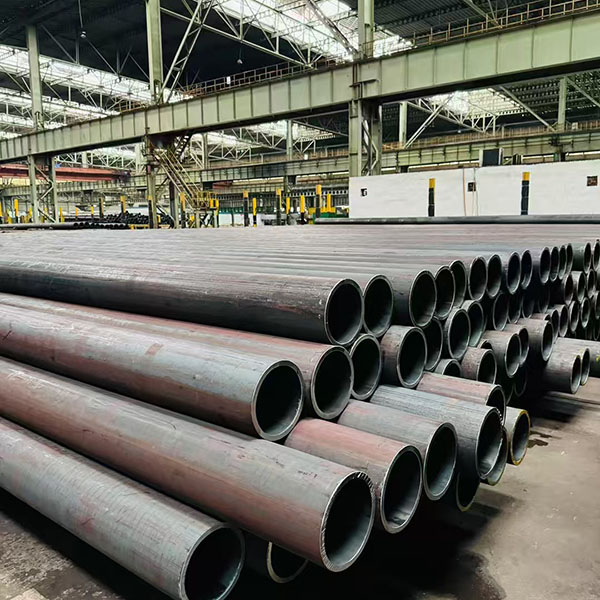

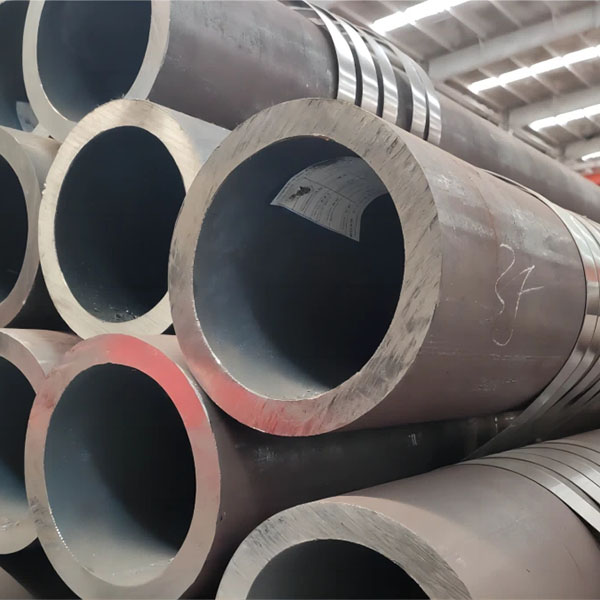

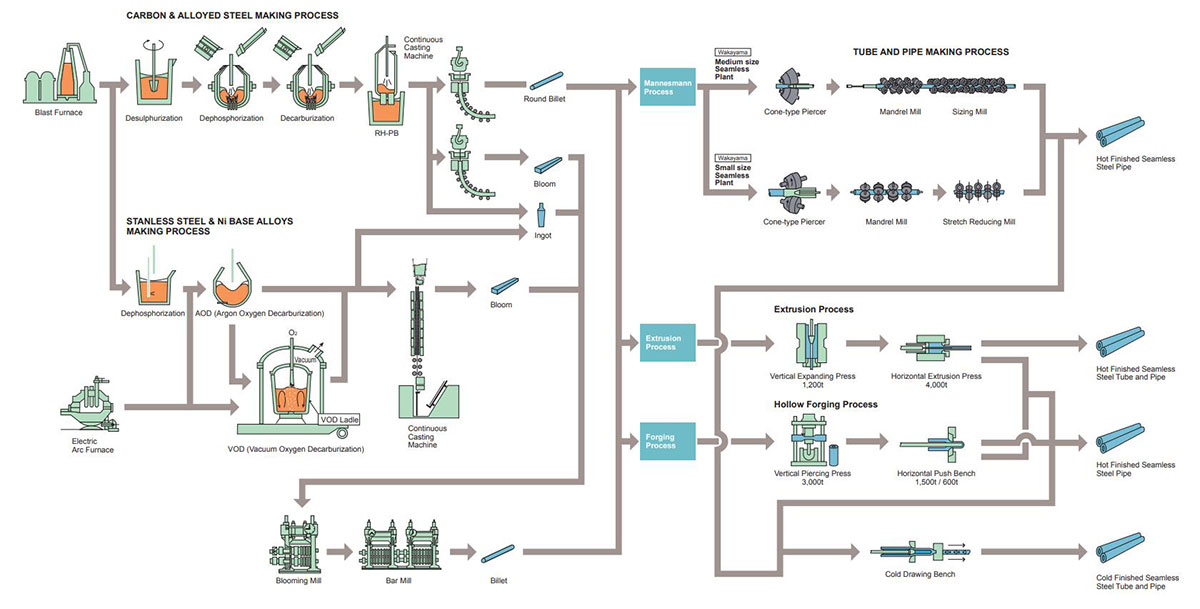

ASTM A213 tubing has been widely used in high temperature services especially for the boiler and superheater. Tube material could be in alloy steel and stainless steel, and manufactured in seamless of hot rolled or cold drawn. Common grades are T9, T11, T12, T21, T22, T91 and stainless grades in TP304 or TP316.

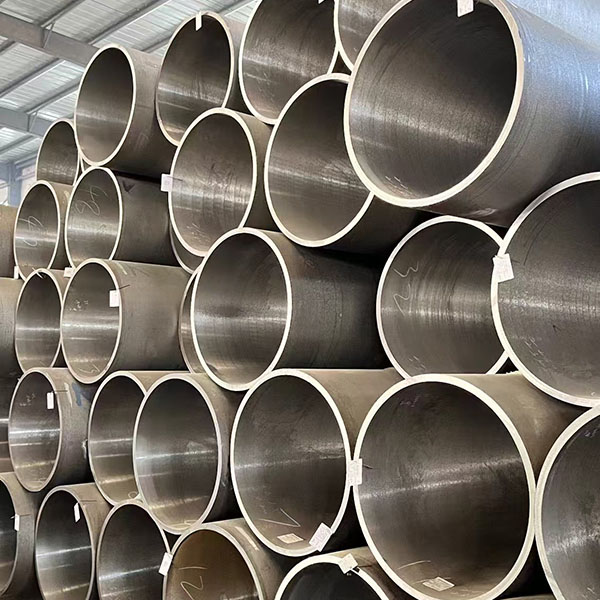

The A335 pipes are generally called chrome moly pipe, it is a type of seamless pipe could be used in high temperature environments of 540 – 750 °C, they have a high level of Chromium and Molybdenum presence in it, While Molybdenum increases the overall strength, resistance, elasticity, hardenability and overall quality, moly ensures that the material is more resistant to softening, restrains the growth of grains and lessens the chances of embrittlement. It is the single additive that is responsible for the increase in high temperature resistance and it also improves the corrosion resistance to steel.
This chrome moly pipe featured grades are ASTM A335 P9, P11, P22, P91, so also it could be called as P Grade pipe in some cases.
P11 pipe, P22 pipe and P91 pipes are used in power industry and petro-chemical plants, meanwhile, P5 and P9 pipe generally find usage in refineries.
ASTM A209 / A209M, ASME SA209 T1, T1a, T1b is the standard applicable to seamless carbon-Molybdenum Alloy-Steel Boiler and Superheater Tubes.
Size:
OD:6-720MM
WT:0.5-120MM
Length:3-16M
Seamless Alloy Steel Tube Application:
1. Construction hall structure, sea trestle, airport structure, shipbuilding, security door frames, garage doors, strengthening liners of steel doors and windows, indoor partition walls, cable bridge structures and expressway safety guards, balustrade, decorating, residential, ornamental pipes.
2. Agriculture： Agricultural equipment.
3. Industry machinery, solar stent, offshore oil field, mine equipment, electromechanical hardware, , heavy engineering, mining and resources, process engineering, materials handling,mechanical parts.
4. Traffic walking rails, roll-up doors, guardrail, plaza structure, signage, road furniture, fencing logistics storage supermarket shelves, containers, transport industries, commercial construction other sports apparatus, leisure equipment, furniture, school furniture.
5. Material storage racks, pallets, hydraulic platforms, trusses, columns, purlins, greenhouse stands towers.
Standard
| A335 | Standard Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
| A213 | Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes |
| A209 | Standard Specification for Seamless Carbon-Molybdenum Alloy-Steel Boiler and Super heater Tubes |
Outside Diameter & Tolerance
| ASTM A450 | Hot rolled | Outside Diameter, mm | Tolerance, mm |
| OD≤101.6 | +0.4/-0.8 | ||
| 101.6＜OD≤190.5 | +0.4/-1.2 | ||
| 190.5＜OD≤228.6 | +0.4/-1.6 | ||
| Cold Drawn | Outside Diameter, mm | Tolerance, mm | |
| OD＜25.4 | ±0.10 | ||
| 25.4≤OD≤38.1 | ±0.15 | ||
| 38.1＜OD＜50.8 | ±0.20 | ||
| 50.8≤OD＜63.5 | ±0.25 | ||
| 63.5≤OD＜76.2 | ±0.30 | ||
| 76.2≤OD≤101.6 | ±0.38 | ||
| 101.6＜OD≤190.5 | +0.38/-0.64 | ||
| 190.5＜OD≤228.6 | +0.38/-1.14 | ||
| ASTM A530 & ASTM A335 | NPS | Outside Diameter, inch | Tolerance, mm |
| 1/8≤OD≤1-1/2 | ±0.40 | ||
| 1-1/2＜OD≤4 | ±0.79 | ||
| 4＜OD≤8 | +1.59/-0.79 | ||
| 8＜OD≤12 | +2.38/-0.79 | ||
| OD>12 | ±1% |
Wall thickness & Tolerance
| ASTM A450 | Hot rolled | Outside Diameter, mm | Tolerance, % |
| OD≤101.6, WT≤2.4 | +40/-0 | ||
| OD≤101.6, 2.4＜WT≤3.8 | +35/-0 | ||
| OD≤101.6, 3.8＜WT≤4.6 | +33/-0 | ||
| OD≤101.6, WT>4.6 | +28/-0 | ||
| OD>101.6, 2.4＜WT≤3.8 | +35/-0 | ||
| OD>101.6, 3.8＜WT≤4.6 | +33/-0 | ||
| OD>101.6, WT>4.6 | +28/-0 | ||
| Cold Drawn | Outside Diameter, mm | Tolerance, % | |
| OD≤38.1 | +20/-0 | ||
| OD>38.1 | +22/-0 | ||
| ASTM A530 | NPS | Outside Diameter, inch | Tolerance, % |
| 1/8≤OD≤2-1/2 | +20.0/-12.5 | ||
| 3≤OD≤18, WT/OD≤5% | +22.5/-12.5 | ||
| 3≤OD≤18, WT/OD>5% | +15.0/-12.5 | ||
| OD≥20, WT/OD≤5% | +22.5/-12.5 | ||
| OD≥20, WT/OD>5% | +15.0/-12.5 |
Length: 5800mm; 6000mm; 6096mm; 11800mm; 12000mm; and so on.
Max length: 16000mm
Keyword: High Pressure Steel Pipe, Boiler Steel Pipe, ASME SA335, P11, ASTM A335
ASTM ASME (S)A-335/(S)A-335M Grade and Chemical Composition
Chemical Composition
|
C, % |
Mn, % |
P, % |
S, % |
Si, % |
Cr, % |
Mo, % |
|
0.05-0.15 |
0.30-0.60 |
0.025 max |
0.025 max |
0.50-1.00 |
1.00-1.50 |
0.44-0.65 |
Mechanical Properties
|
Tensile Strength, MPa |
Yield Strength, MPa |
Elongation, % |
|
415 min |
205 min |
30 min |
| Grade | UNS | C≤ | Mn | P≤ | S≤ | Si≤ | Cr | Mo |
| P1 | K11522 | 0.10~0.20 | 0.30~0.80 | 0.025 | 0.025 | 0.10~0.50 | - | 0.44~0.65 |
| P2 | K11547 | 0.10~0.20 | 0.30~0.61 | 0.025 | 0.025 | 0.10~0.30 | 0.50~0.81 | 0.44~0.65 |
| P5 | K41545 | 0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 4.00~6.00 | 0.44~0.65 |
| P5b | K51545 | 0.15 | 0.30~0.60 | 0.025 | 0.025 | 1.00~2.00 | 4.00~6.00 | 0.44~0.65 |
| P5c | K41245 | 0.12 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 4.00~6.00 | 0.44~0.65 |
| P9 | S50400 | 0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50~1.00 | 8.00~10.00 | 0.44~0.65 |
| P11 | K11597 | 0.05~0.15 | 0.30~0.61 | 0.025 | 0.025 | 0.50~1.00 | 1.00~1.50 | 0.44~0.65 |
| P12 | K11562 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 0.80~1.25 | 0.44~0.65 |
| P15 | K11578 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 1.15~1.65 | - | 0.44~0.65 |
| P21 | K31545 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 2.65~3.35 | 0.80~1.60 |
| P22 | K21590 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 1.90~2.60 | 0.87~1.13 |
| P91 | K91560 | 0.08~0.12 | 0.30~0.60 | 0.020 | 0.010 | 0.20~0.50 | 8.00~9.50 | 0.85~1.05 |
| P92 | K92460 | 0.07~0.13 | 0.30~0.60 | 0.020 | 0.010 | 0.50 | 8.50~9.50 | 0.30~0.60 |
Note:
(S)A335 P91 other chemical composition are : V 0.18~0.25; N 0.030~0.070; Ni ≤ 0.40; Al ≤ 0.04 ; Nb 0.06~0.10
(S)A335 P92 other chemical composition are : V 0.15~0.25; N 0.030~0.070; Ni ≤ 0.40; Al ≤ 0.04 ; Nb 0.04~0.09; W 1.5~2.00 ; B 0.001~0.006

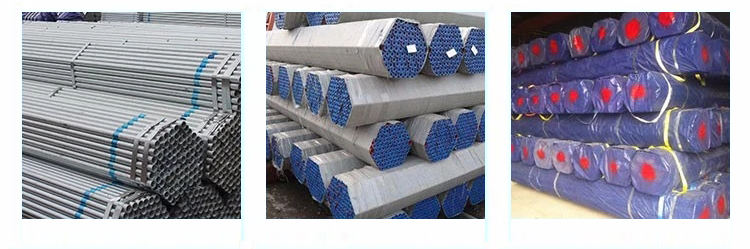

Painting & Coating: Oiled or Black painted to prevent rust
